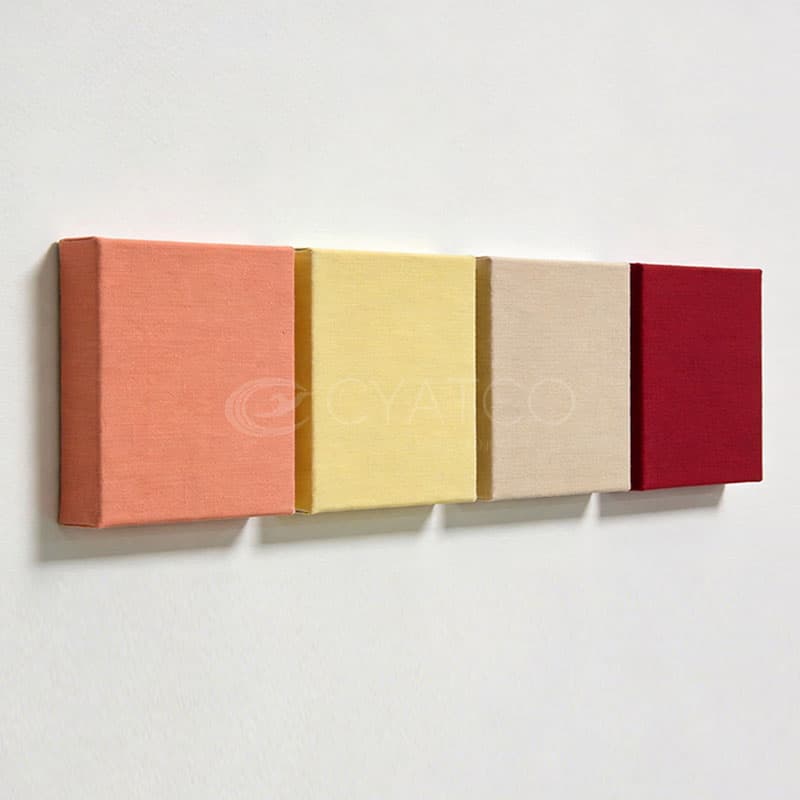

Fabric Wrapped Square Sound Absorbing Materials Ceiling & Wall Panels

1. Introduction to Fabric Wrapped Square Sound Absorbing Materials Ceiling & Wall Panels

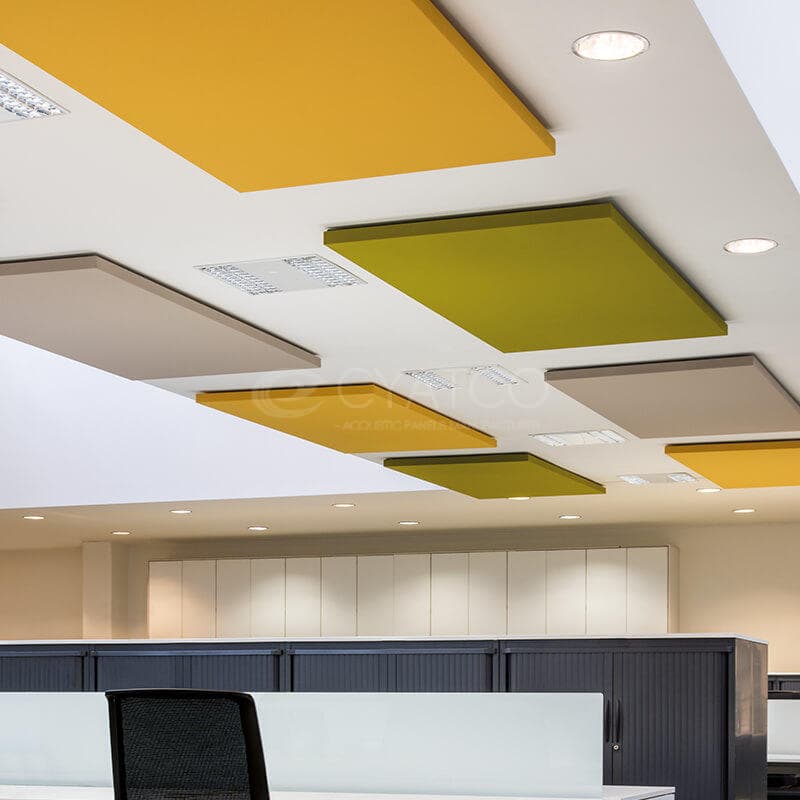

This cloth acoustic panel is designed for installation on walls or ceilings using dedicated light steel keel systems. As a comprehensive and highly innovative acoustic solution, it is suitable for a wide range of environments, including office areas, conference halls, restaurants, and educational and leisure spaces.

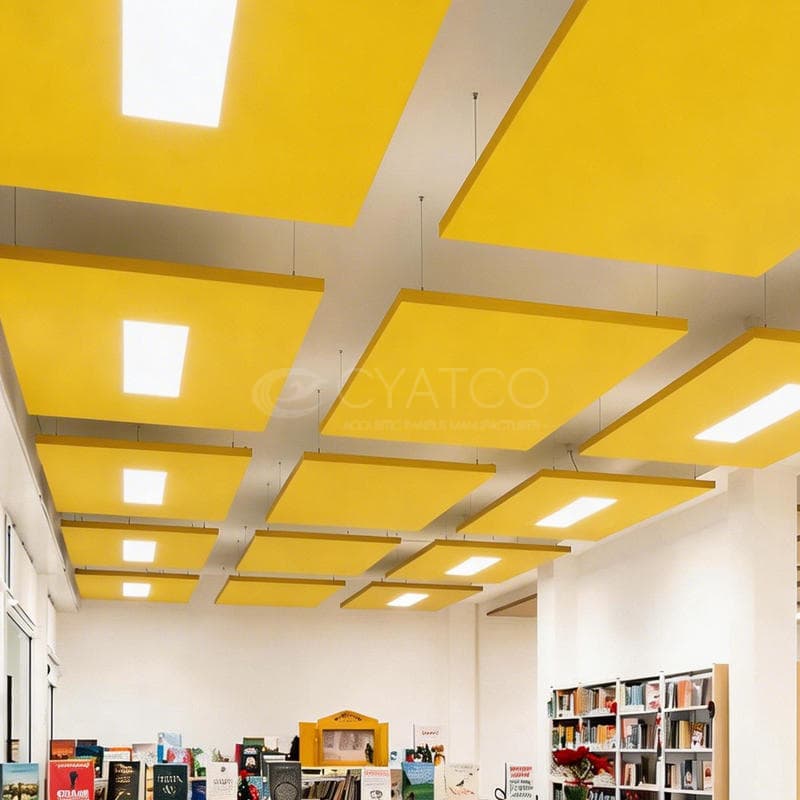

In addition to the wall- and ceiling-mounted versions, a suspended ceiling variant is available and is installed via adjustable steel cables, providing greater flexibility during construction. The product offers a variety of configuration options, allowing the fabric acoustic panels to be installed at varying heights and in different arrangements.

Furthermore, the fabric acoustic panels can be equipped with LED lighting components, engineered to work seamlessly with the entire acoustic system.

1.1 Materials

Fabric acoustic panels consist of a frame, internal sound-absorbing material, and a fabric finish, featuring a simple structure and convenient installation. They combine effective sound absorption and noise reduction with decorative appeal, offering stable acoustic performance.

① SOUND-ABSORBING MATERIALS

The sound-absorbing properties of yellow fiberglass acoustic wool and white polyester fiber acoustic wool are roughly equivalent.

However, white polyester fiber acoustic wool is more eco-friendly; its fibers are finer and longer, its structure is stable, and it is dust-free—making installation safe and user-friendly. Consequently, it is better suited for spaces where health is a priority, such as schools, offices, and residential interiors.

② Frame

Hardened Frame (Regular): This frame utilizes an integrated, molded structure that offers exceptional structural integrity, superior flatness, and moderate cost-effectiveness, making it well-suited for the stable installation of standard wall and ceiling applications.

Alloy Frame: Characterized by high structural strength, resistance to deformation, refined aesthetics, fire resistance, and durability, this frame option is the ideal choice for high-end venues, suspended installations, and applications where both structural robustness and sophisticated visual appeal are paramount requirements.

③ Fabric Covering

For large-scale projects, we cordially invite designers to participate in panel customization, selecting from a wide variety of fabric types and surface finishes. Both the dimensions and shapes of the panels can be flexibly adjusted.

1.2 Lighting

The lighting components are specifically designed to support the fabric acoustic panels and integrate seamlessly with them.

1.3 Dimensions

Our fabric acoustic wall and ceiling panels come in a variety of standard sizes.
Suitable for any space, they achieve an ideal balance between acoustic performance and aesthetic design.
With excellent acoustic properties, they allow flexible, efficient layouts for optimal acoustic comfort.
Please select your preferred size below.

For project-specific needs, we also offer custom-sized panels.

1.4 ACOUSTIC ABSORPTION AND CERTIFICATIONS

2. Customized fabric-wrapped square sound-absorbing products

2.1 Customised Dimensions

The cloth sound-absorbing panels can be made to measure, to adapt to individual project requirements. Length from a minimum of 300 mm to a maximum of 2440 mm; width from a minimum of 300 mm to a maximum of 2400 mm; thickness from a minimum of 9 mm to a maximum of 100 mm.

2.2 Customised Shapes

2.3 Customised Edge Styles

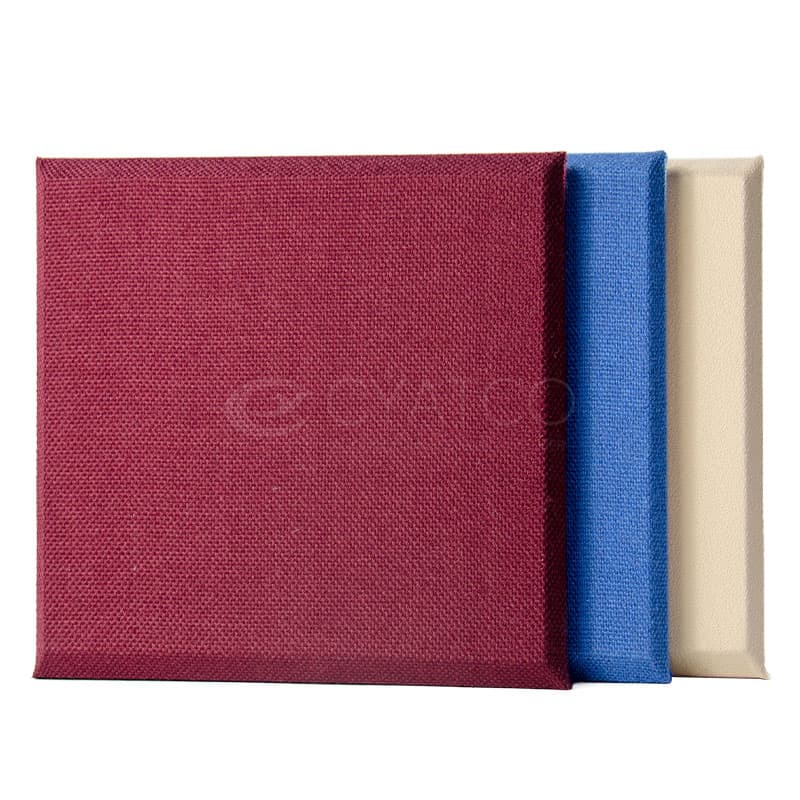

Fabric Acoustic Panels (Beveled Edge): The beveled-edge treatment ensures a more aesthetically pleasing panel assembly with softer transitions, minimizes the risk of accidental bumps against sharp corners, and enhances both the overall visual quality and safety of the installation.

Fabric Acoustic Panels (Square Edge): Featuring a non-beveled design, this version boasts a simpler structural composition and lower cost. Its distinct, sharp edges make it ideal for settings where a clean, bold aesthetic is desired, or for applications where precise visual alignment of the seams is not a primary concern.

3. Installation Methods for Fabric-Wrapped Square Ceiling & Wall Panels

We offer a wide variety of accessories: wall or ceiling mounting kits, and steel cable kits for suspending panels from the ceiling.
