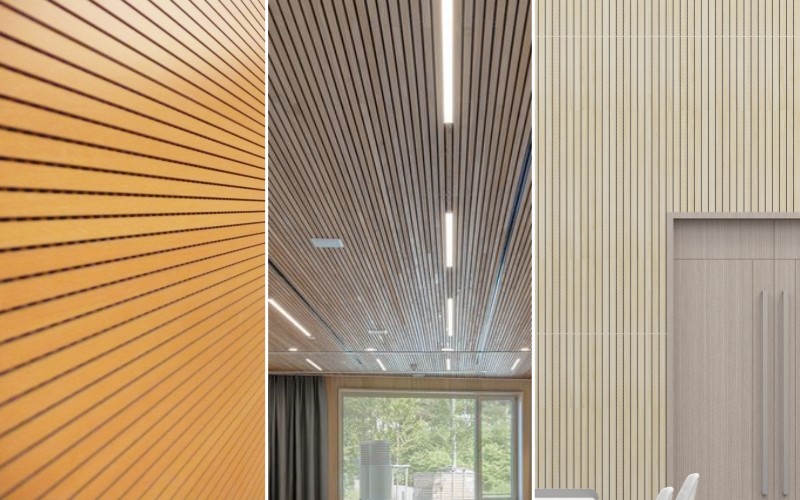

Acoustic Wooden Grooved Wall Panelling
The grooved wood acoustic panel is made from high-quality wood as the base material and undergoes meticulous processing, with a series of precise grooves cut on the surface. These grooves not only endow the board with a unique visual texture but are also the key to its outstanding sound absorption performance. The grooved wood acoustic board adopts a multi-layer structure. The surface layer is covered with natural wood veneer, engineered wood veneer, or fireproof board. The middle layer is centered on high-density fiberboard (MDF), and the bottom layer is equipped with a suitable backing layer, comprehensively enhancing the structural strength and acoustic characteristics of the board.
Technical parameters
1. Base material
MDF (Medium Density Fiberboard)
- Ordinary MDF: An economical option, suitable for general scenarios.
- Fireproof MDF: Flame-retardant grade reaches Grade A in China, suitable for public places.
- Environmental protection MDF: The formaldehyde emission complies with the E1 standard of China and the European Union (≤0.124mg/m³).
- Magnesium Board (MgO Board): Fireproof, moisture-proof, suitable for humid environments.
2. Surface material
- Natural wood veneer: Retains the true grain of wood and enhances the texture.
- Fireproof board (HPL): Wear-resistant and moisture-proof, suitable for high-flow areas.
- Melamine veneer: Rich in colors and easy to clean.
- Spray painting/baking varnish: Custom color, smooth surface.
3. Backing layer: Usually black sound-absorbing velvet or non-woven fabric, which enhances the sound absorption effect and prevents dust.
Common specifications: 3mm slot /13mm pitch (13-3), 4mm slot /28mm pitch (28-4), etc.
Standard size
Length: 2440mm.
Width: 133mm, 197mm (Modular design, supports splicing).
Thickness: 12mm, 15mm, 18mm (Increasing thickness can enhance the low-frequency sound absorption performance)
Acoustic Wooden Grooved Wall Panelling Reference EXW Price / Purchase Qty.
|
Tongue and Groove Wood Acoustic Cladding >= 100 m2 Negotiable |
Interior Grooved Timber Wall Cladding >= 100 m2 Negotiable |
| Browse more >> wooden grooved wall panels | |
Applicable scenarios

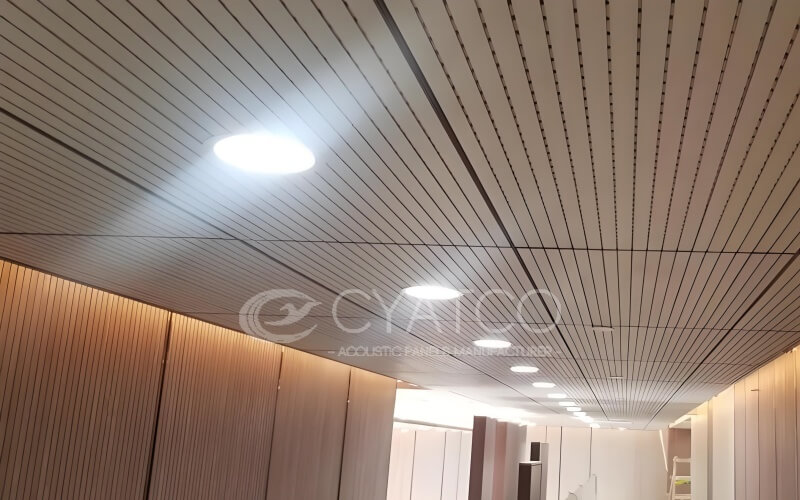

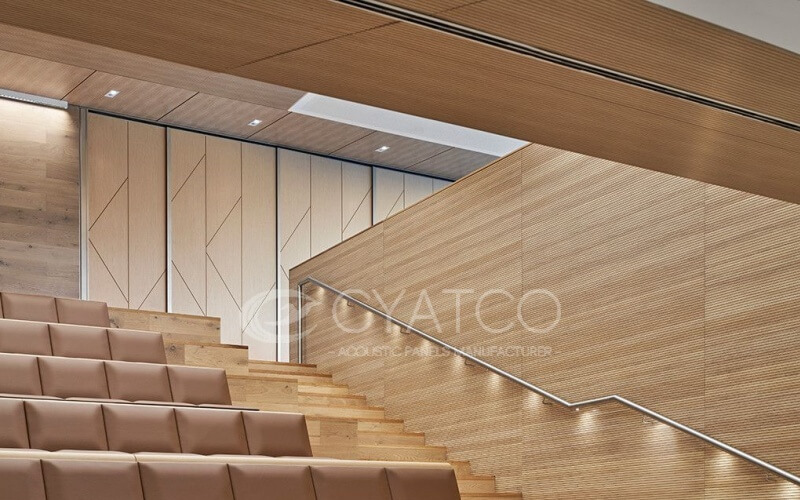

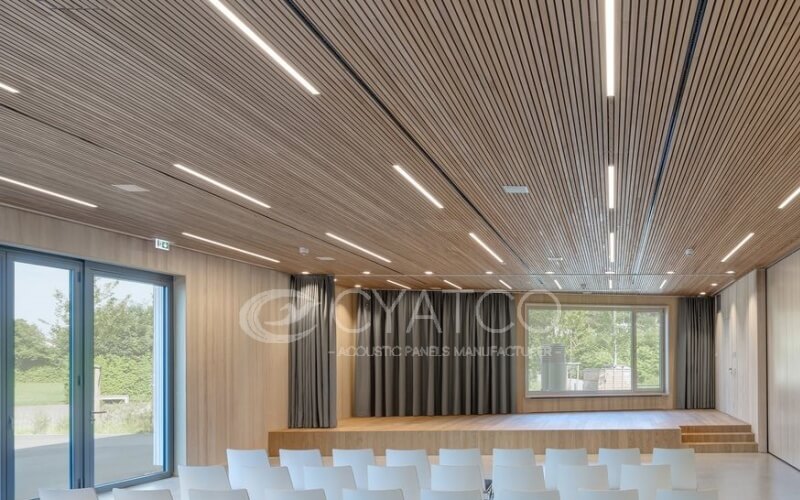

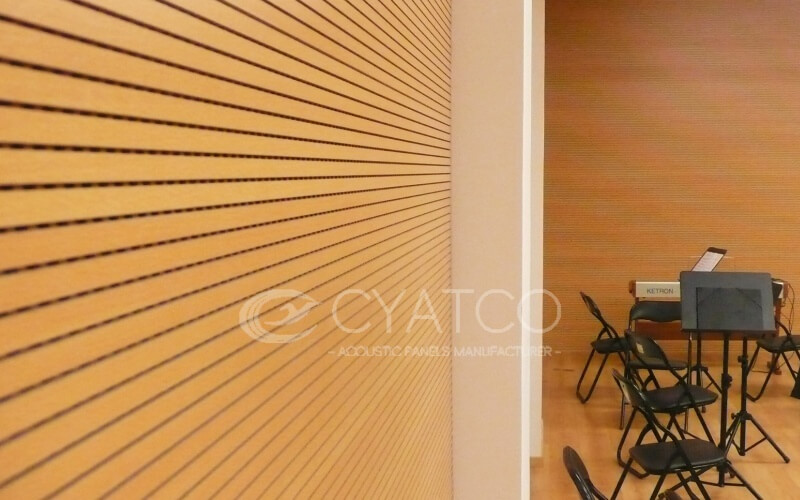

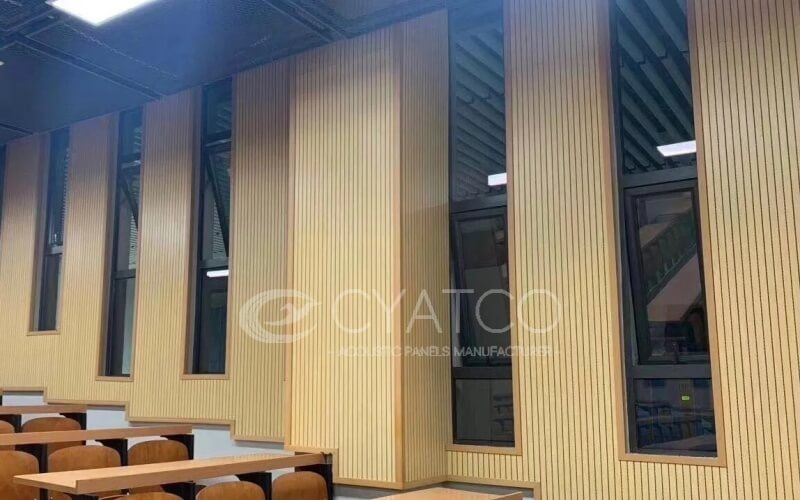

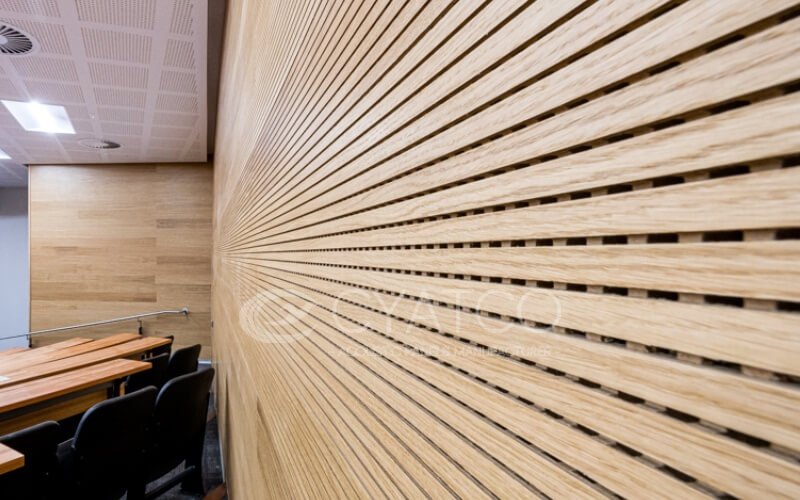

Grooved wood sound-absorbing boards are suitable for various places that have high requirements for the acoustic environment and decorative effect. In commercial Spaces such as meeting rooms, lecture halls, and multi-functional halls, it can effectively enhance voice clarity and ensure the accurate transmission of information. In cultural and entertainment venues such as theaters, concert halls, and recording studios, it can optimize acoustic effects and enhance artistic expressiveness. In the field of education, the use of grooved wood sound-absorbing boards in school classrooms, libraries, etc., helps to create a quiet and focused learning environment.
The installation of the grooved wood sound-absorbing panel is both straightforward and efficient. It can be securely attached to the wooden keel using clips or nails. Employing a nail gun for this purpose simplifies the process and proves to be cost-effective, significantly reducing the construction timeline.
Additionally, the board has undergone pre-treatment, resulting in a smooth and flat surface that facilitates easy cleaning and maintenance. In everyday use, it requires only a gentle wipe with a soft, damp cloth to maintain its tidy appearance.
High-quality grooved wood acoustic board manufacturers in China
Guangdong Chuangya Acoustic Technology Co., LTD. (CYATCO)
Core advantages: With 20 years of experience in research and development, as well as production of acoustic panels, we have achieved ISO 9001 certification. Our products cover the full range of series, including grooved wood, perforated wood, polyester fiber sound-absorbing boards, etc.
Technical strength: The factory spans 3,000 square meters and is equipped with automated CNC panel saws and punching equipment. It supports custom slot patterns (such as 28-4, 59-5 specifications) and irregular sizes.
Product features
The base material can be selected from ordinary MDF, fire-resistant MDF, or magnesium board, and the formaldehyde emission reaches the EU E1 grade.
The finish supports natural wood veneer, melamine veneer, or spray paint, with a black sound-absorbing velvet backing.
Typical model: 15mm thick grooved wood sound-absorbing board, NRC sound absorption coefficient 0.8-0.9 (with 50mm acoustic cotton).
