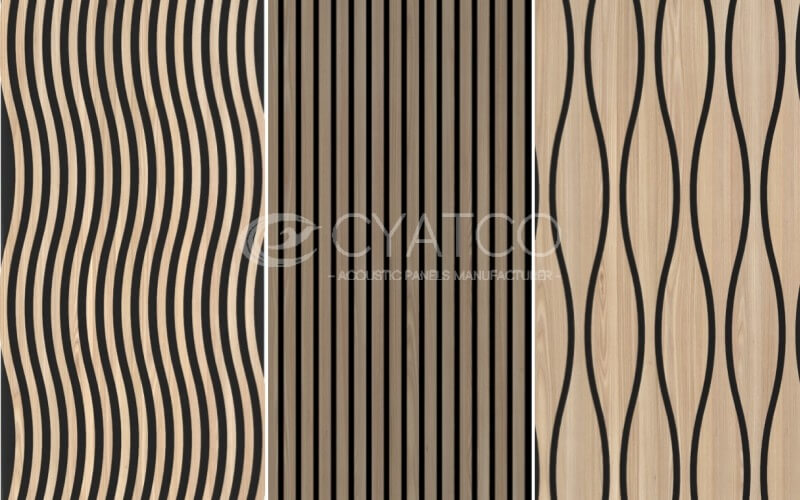

Wooden Fluted Wall Panels
The Wooden Fluted Wall Panel is an environmentally friendly acoustic board that combines acoustic optimization with decorative functionality. It disperses sound waves through a channel structure, effectively reducing indoor noise (NRC≥0.85), while providing a natural wood grain aesthetic. It is suitable for scenarios that require acoustic control, such as meeting rooms, educational institutions, and hotels.
Product specifications and parameters
Basic parameters
Material

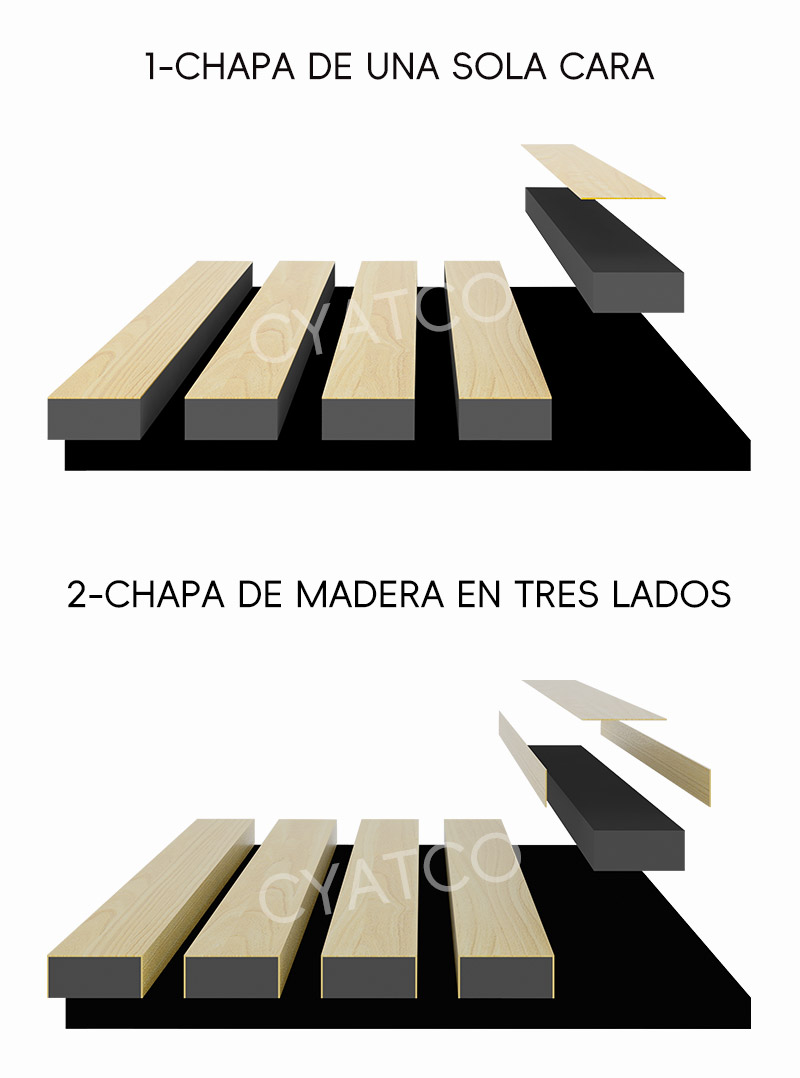

Surface: Solid wood veneer (oak/walnut/grey oak, etc.), PET felt backing (100% polyester fiber)
Base material: MDF medium-density fiberboard (E1 grade environmental protection standard)
Size
Standard plate: 2400mm×600mm×22mm (Length, width, and thickness can be customized)
Slot distance: 13mm/15mm (optional)
Color
Wood grain color series: 18 standard colors (color card customization supported)
Felt backing: 3 basic colors (black/gray/white)
Acoustic performance
Noise reduction coefficient (NRC): 0.85-0.92 (Laboratory data)
Installation method: Screws/glue/exposed keel (supports dual uses on walls and ceilings)
Environmental protection certification
International standards: SGS certification, FSC certification
Customized service
Irregular cutting: arc-shaped, wavy, polygonal (CAD drawings are required)
Material mix and match: Metal strip embedding, material reinforcement (to enhance fire resistance rating)
Customization flexibility: Supports small-batch and multi-style mixed packaging (reducing inventory risks)
After-sales service
Technical support: Provide installation video and acoustic design consultation
Replenishment policy: Products with quality issues can be returned or exchanged unconditionally

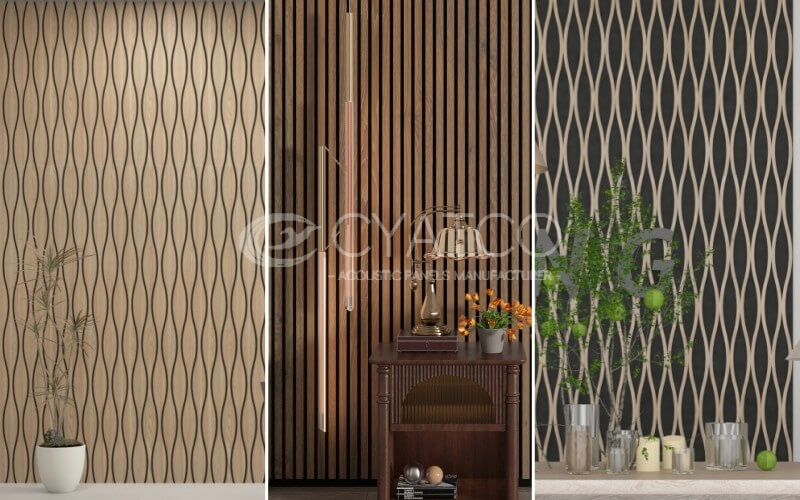

Application Spaces
Concert Halls and Theaters: Optimize acoustic performance while enhancing sound quality and audience experience.
Offices and Meeting Rooms: Diminish background noise to improve communication efficiency.
Restaurants and Shopping Malls: Manage environmental noise levels to create a comfortable atmosphere for consumers.
Schools and Libraries: Minimize external distractions to foster enhanced learning concentration.
